A Practical Guide to Installation Access Control System Deployment

A successful access control deployment has very little to do with drills and wiring. It starts long before anyone touches a piece of hardware, rooted in a comprehensive plan that aligns your security needs with your operational goals.

I can't stress this enough: this initial phase is the single most critical factor in achieving a secure, compliant, and cost-effective outcome.

Planning Your Access Control System Installation

Before a single cable gets pulled or any hardware is ordered, you have to lay a solid foundation through careful planning. I've seen it time and again—skipping this stage leads to scope creep, budget overruns, and a system that just doesn't quite do what you need it to.

Think of your plan as the blueprint for the entire project. It ensures every decision is purposeful and every dollar is well-spent, turning the vague idea of "better security" into a concrete, actionable strategy. The market for these systems is booming, which shows just how vital they've become. The U.S. market alone is projected to hit USD 2.62 billion in revenue in 2024 and is on track to reach USD 3.68 billion by 2030.

While hardware makes up about 45% of that, the real growth is in services—including the crucial installation and maintenance we're talking about here.

Define Your Security Goals

First things first, you need to answer a fundamental question: what are you trying to protect, and from whom? Your goals will dictate everything, from the complexity to the scale of your system. Are you worried about external threats, need to monitor employee movement, or just want to make access more convenient?

Let's break down some common objectives:

• Securing High-Value Assets: Do you have server rooms, sensitive document storage, or executive offices that need to be locked down tight? These are your priority number one.
• Improving Employee Safety: Maybe the goal is simpler, like ensuring only authorized staff can enter the building after hours to create a safer environment for those working late.
• Tracking and Auditing Access: For compliance or operational insight, you might need a detailed log of who went where and when. This is huge in regulated industries.
• Streamlining Operations: Are you tired of the hassle and cost of managing physical keys, especially in a place with high turnover? An access control system can eliminate that headache entirely.

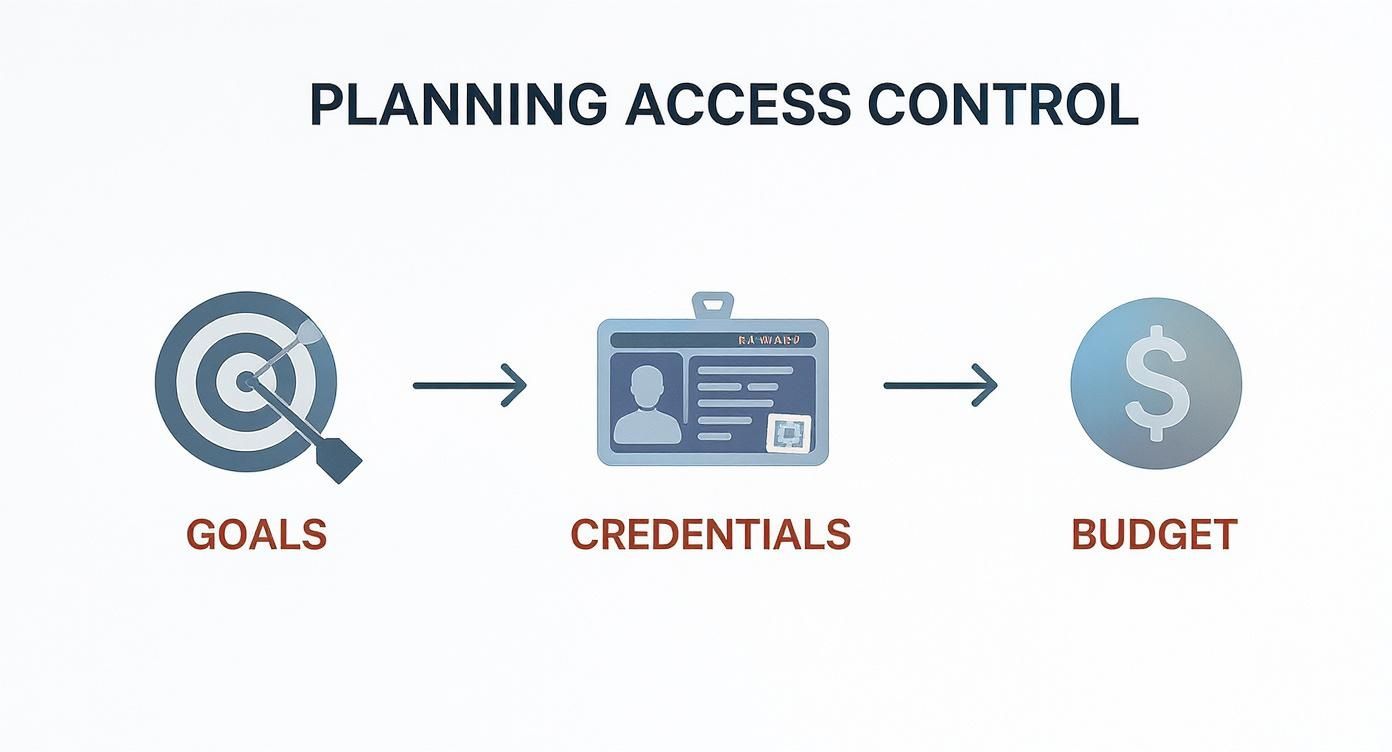

This simple flowchart shows how these key planning stages flow together, from setting your goals all the way to finalizing a budget.

Visualizing the process like this helps make sure you've covered all your bases before getting into the more technical details.

Evaluate Your Credential Options

Next up, how will people actually use the system? The "key" they carry—the credential—is a massive factor in both security and the day-to-day user experience. Your choice here needs to match your environment and how comfortable your users are with technology.

Here's a quick comparison of the common technologies to help you decide which is the best fit for your facility's security and user experience.

Choosing the Right Access Control Technology

Technology Type	Best For	Pros	Cons
Key Cards & Fobs	General office access, multi-family housing, and budget-conscious projects.	Cost-effective, reliable, easy to issue and deactivate, familiar to users.	Can be lost, stolen, or shared; less secure than other options.
Mobile Credentials	Modern workplaces, tech-forward buildings, and facilities wanting remote management.	Highly convenient (users rarely forget their phone), secure, easy to manage remotely.	Requires users to have a compatible smartphone; potential battery or connectivity issues.
Biometrics	High-security areas like data centers, labs, and government facilities.	The highest level of security (cannot be lost or shared), provides irrefutable audit trails.	Higher initial cost, potential privacy concerns, can be slower than a simple tap.

Ultimately, you need to find the right balance. You can even mix and match technologies, using biometrics for your server room and simple key fobs for general office doors.

A classic mistake I see is choosing a credential based on trends instead of practicality. A high-tech biometric reader is total overkill for a low-risk storage closet, but a simple key card won't cut it for a data center. Always match the technology to the risk level of the door.

Ensure Regulatory Compliance

This part is non-negotiable. Your access control system must comply with all relevant laws and building codes. The two big ones to watch out for are the Americans with Disabilities Act (ADA) and local fire codes.

The ADA has specific requirements for things like door hardware height and ease of operation. Fire codes, on the other hand, dictate whether locks need to be fail-safe (unlock when power is lost) or fail-secure (remain locked when power is lost) to ensure people can get out safely during an emergency.

Navigating these regulations can be tricky, which is why partnering with a knowledgeable installer is so important. For a deeper dive, take a look at our guide on choosing security systems for businesses, which touches on more of these essential compliance considerations.

Conducting a Thorough On-Site Survey

Alright, you've got your security goals mapped out. Now it's time to get out of the office and onto the ground floor. This is where your plan meets the real world—the on-site survey.

Think of this as more than a simple walkthrough. It's a critical investigation of your building's anatomy, a chance to spot the challenges and opportunities a blueprint will never reveal. Getting this right from the start is your best defense against those "surprise" costs and delays that can sink a project budget. An incompatible door frame or a lack of power nearby can derail an installation fast if you don't catch it early.

Assessing Each Access Point

Your first mission is to visit every single door, gate, and entryway you plan to secure. And I mean every one. Don't just glance at the door itself; you need to analyze its entire environment.

At each location, pay close attention to the details:

• Door and Frame Material: What are you working with? Wood, hollow metal, solid core, glass with an aluminum frame? This detail is crucial because it dictates the kind of electric lock you can use—an electric strike is very different from a maglock—and how much labor it'll take to install it.
• Existing Hardware: Look at the current lockset, handle, and any panic bars. Can you work with what's there, or does it all need to be replaced? Figuring this out now saves a lot of headaches later.
• Reader Placement: Where will the card reader actually go? It needs to be at an ADA-compliant height, in a spot that makes sense for users, and—most importantly—where you can realistically run a wire back to the controller.

A truly effective site survey looks beyond the doors. It's about building a complete picture of your property's infrastructure. If you want a more structured way to capture all this information, our commercial building inspection checklist can be a great tool to keep your notes organized.

Mapping Infrastructure and Cable Paths

Once you've cataloged every door, it's time to shift your focus to the backbone of the system. You need to physically trace the path from each reader and lock location all the way back to your network closet or server room.

Smart cable routing is a huge money-saver. A clean, direct path means less material and fewer labor hours. Start looking for the path of least resistance: Are there accessible ceiling tiles, existing conduits, or usable wall cavities? The goal is always a clean, professional installation that looks like it was part of the original building design.

I've seen projects where poor cable planning added 20-30% to the final cost. Always identify the most direct and accessible routes. It’s also crucial to locate the nearest reliable power source for your controllers and locks, especially if you aren't using Power over Ethernet (PoE) for everything.

Identifying Potential Challenges

Every building has its secrets, and your job is to uncover them before they become problems. As you walk the site, actively hunt for potential roadblocks.

You’ll often run into things like:

• Wireless Dead Zones: If you're planning on using any wireless locks, pull out a signal meter and test the connectivity right at the door. You don't want to find a dead zone after the lock is installed.
• Hazardous Materials: In older buildings, be mindful of things like asbestos. Drilling into walls or ceilings could require a specialized team, which adds time and cost.
• Historic Building Restrictions: Working on a landmark property? You might face strict rules about modifications. This can seriously impact where you can drill or how you can mount hardware.

Document everything you find with photos and detailed notes. This information is pure gold. It allows you to build a precise bill of materials and a realistic work plan that accounts for the site's unique conditions, paving the way for a much smoother installation.

Selecting Your Hardware and Network Gear

With a solid plan and your site survey complete, it's time for the fun part: picking the gear. The hardware and network infrastructure are the heart and brains of any modern installation access control system. Getting these choices right from the start is what separates a reliable, secure system from a constant headache.

Every component, from the reader on the wall to the lock inside the door, has a job to do. Understanding how they all fit together is the secret to a smooth, functional system from day one.

The Core Components: Readers and Controllers

Think of the card reader as the system's gatekeeper. It’s what captures the credential—whether it’s a keycard, a fob, or a tap from a smartphone—and passes that information along. The industry is moving fast toward smarter hardware. Projections show that by 2035, advanced components like readers, biometric scanners, and electronic locks will make up a massive 56% of the market. We're seeing huge growth in sophisticated methods like iris recognition. You can discover more insights about these access control market trends.

The controller, on the other hand, is the local brain. It takes the data from the reader, checks it against its own list of permissions, and decides whether to unlock the door or deny entry. This is a crucial job, especially during a network outage. A good controller can operate independently, ensuring your security stays up even when your internet goes down.

Choosing the Right Electric Locks

The lock is where the magic happens, physically securing the door. The type of lock you need depends almost entirely on the door's function and local fire code requirements. You'll primarily deal with two types: fail-safe and fail-secure.

• Fail-Secure Locks: When the power goes out, these locks stay locked. They are perfect for securing sensitive areas like IT closets or server rooms where security is the top priority, no matter what.
• Fail-Safe Locks: These do the opposite, unlocking automatically when power is cut. They are legally mandated for fire exits and main escape routes to ensure everyone can get out safely during an emergency.

From there, you’ll get into specific lock hardware. An electric strike is a common choice that replaces the standard strike plate in the door frame, making it a versatile option for many office doors. A magnetic lock (maglock) uses a powerful electromagnet and is often the go-to for glass doors or other high-security entryways.

One of the most common mistakes I see is someone choosing a lock based on price or what they've used before, completely ignoring the door's purpose. Putting a fail-secure lock on a main emergency exit is a serious compliance violation and a massive safety hazard. Always let the door's function and local fire codes be your guide.

Building a Secure Network Foundation

Your access control hardware is only as good as the network it runs on. A poorly designed network is a weak link that can undermine the best physical security gear. Two technologies are absolutely essential for a clean and secure installation: Power over Ethernet (PoE) and Virtual LANs (VLANs).

PoE is a true game-changer. It lets you run both data and power over a single network cable to devices like card readers and controllers. This drastically simplifies the wiring, means you don’t need to install a power outlet at every single door, and ultimately brings down labor costs. It’s simply a cleaner, more efficient way to power your system.

To protect the data itself, you need to isolate your access control traffic on its own VLAN. Think of a VLAN as a private, virtual highway just for your security devices, keeping them completely separate from regular office traffic like employee laptops and guest Wi-Fi. This separation is critical—it prevents someone on the main network from potentially snooping on security data or trying to tamper with the system. It’s a simple but incredibly powerful security step. If you're new to this side of things, it helps to understand the fundamentals of a well-organized network backbone. You can check out our guide on what is structured cabling to get up to speed.

Integrating Systems for Smarter Security

A modern installation access control system shouldn't be a lonely island. Its real value shines when you get it talking to the other security and building management tools you’re already using. By weaving these systems together, you turn a simple gatekeeper into an intelligent hub that reacts to events in real time, boosts efficiency, and gives you a much richer understanding of your property's security.

This isn’t just about convenience; it’s about creating a responsive ecosystem. One system's trigger can kick off an action in another, automating responses that would otherwise take precious minutes of manual work. The result is a sharper, more aware security posture for your entire site.

Linking Video Surveillance and Access Events

One of the first integrations you should consider is connecting your access control platform to your video surveillance system. This is a game-changer. Suddenly, every access event—a card swipe, a phone tap, even a failed attempt—is automatically tagged with the exact video footage of that moment.

Think about it: you get an alert for an unauthorized access attempt at a sensitive door at 2 AM. Instead of a security guard having to scrub through hours of footage, the system instantly serves up the video clip of the incident. This kind of immediate visual proof is priceless for investigating and responding to what's happening on the ground.

This synergy is especially powerful in certain environments:

• Multi-Family Housing: Instantly verify who is entering the building, confirm if a guest is legitimate, and investigate complaints about unauthorized people in the gym or pool area.
• Commercial Properties: Match every after-hours door access with video to monitor late-night activity, keep tabs on vendor movements, and have indisputable evidence if theft or damage occurs.

Unifying Alarms and Intercoms for a Coordinated Response

Bringing your alarm and intercom systems into the fold creates a truly unified command center for your property. This connection lets you set up smart, rule-based actions that make your building safer and easier to manage.

For instance, if a fire alarm goes off, the system can automatically unlock all the emergency exits while simultaneously locking down other areas to contain a threat. On the flip side, if an intrusion alarm is triggered, the system can lock down that specific zone to stop an intruder from moving freely through the building.

Tying your intercom into the access control system is a huge win for managing visitors. A guest can call a tenant or receptionist, who can then see them on camera and grant temporary access right from their phone or desk—all logged and tracked by the access control platform.

This level of automation means faster, more reliable responses in an emergency and smoother day-to-day operations.

Automating User Management with HR Integration

For any decent-sized organization, managing who has access and who doesn't can become a massive headache. This is where integrating with your Human Resources (HR) platform is a lifesaver. It automates the entire lifecycle of a user’s access rights, from onboarding to offboarding.

When your HR and access systems are linked, the HR platform becomes the single source of truth. A new hire gets added to the HR system, and their access credential is automatically created with the right permissions. Even more critically, when an employee leaves and is removed from HR, their access is instantly and automatically revoked everywhere.

This closes a major security gap, ensuring old credentials can't be used and only current staff can get in. For these kinds of advanced connections, it's vital to follow strong REST API Security Best Practices to protect your data and keep the system secure.

Final System Testing and Project Handover

You’ve done the hard work. The wires are pulled, the hardware is on the walls, and the software is up and running. But the job isn't done yet. This is the commissioning phase—the critical point where we put the entire system through its paces to make sure it works as a single, cohesive unit, not just a collection of parts.

Think of it as the final dress rehearsal. We’re going to intentionally try to break things in a controlled environment to find any weak spots before a real-world problem does. Skipping this step is like building a custom car and never taking it for a test drive. You're leaving way too much to chance, and with security, chance is not a risk worth taking.

Executing a Rigorous Testing Protocol

The key here is to be methodical. Don't just swipe a card and call it a day. You need a detailed checklist to test every door, every reader, and every possible scenario you can think of.

A solid testing plan should cover these fundamentals:

• Individual Component Checks: Walk up to each door and test every piece of hardware. Does the reader beep and flash the way it should? Does the lock engage and disengage without a hitch? Don't forget to test the request-to-exit buttons and motion sensors.
• Credential Verification: This is a big one. Test different credentials (cards, fobs, mobile apps) for different users. Make sure an authorized user gets in, but more importantly, confirm an unauthorized user is denied. Does the intern's card get rejected from the server room? It better.
• "Door Forced Open" Alarms: With the door locked, give it a good pull to simulate a break-in. This should instantly trigger a "door forced" alarm in your management software. If it doesn't, the door position switch isn't working right.
• "Door Held Open" Alarms: After a valid entry, prop the door open longer than the allowed time—usually 15-30 seconds. This is a crucial test for preventing tailgating, and it should immediately generate a "door held" alert.

I once worked on a project where the client was ready to sign off after a quick "swipe-and-open" test. I insisted we run through the full alarm protocol. We discovered that half the "door held open" alerts weren't configured correctly. Catching that during testing saved them from a major security blind spot down the line.

Simulating Real-World Failure Scenarios

A security system that only works when conditions are perfect is practically useless. The real measure of its strength is how it behaves when things go wrong. Now’s the time to simulate failures and see if your safety protocols and backups actually work.

You absolutely must test these two scenarios:

1. Power Failure Simulation: This is non-negotiable. Kill the main power to your access control panel and watch what happens. The battery backup should take over instantly, with no interruption to the system's operation. This simple test confirms your batteries are healthy and that the building will stay secure during an outage.
2. Network Outage Simulation: Unplug the controller from the network. The controller should fall back on its cached database and continue to make access decisions locally. This proves that even if the internet goes down, people can still get where they need to go.

Once you’ve gone through every test and everything passes with flying colors, the system is officially ready for the final step.

Conducting a Smooth Project Handover

The project isn’t truly finished until you’ve handed the keys over to the people who will be managing the system every day. A great handover empowers the end-user and sets them up for success, which means fewer panicked phone calls for you later.

A proper handover has two main parts: solid documentation and hands-on training.

Your handover package should be a clean, organized binder or folder containing everything they’ll need:

• As-Built Drawings: A final floor plan showing the exact location of every reader, controller, and lock.
• Device Schedule: A simple spreadsheet listing every device, its name, location, IP address, and serial number.
• Administrator and User Manuals: Guides on how to handle day-to-day tasks like adding a new employee, running reports, or checking on an alarm.
• Installer Contact Information: Clear details on who to call for support.

Finally, schedule a dedicated training session. Don't just email them a PDF. Sit down with the system administrators and walk them through the software. Show them how to manage users and pull reports. A little training goes a long way in preventing user error and making sure everyone feels confident with their new system.

Common Questions About Access Control Installation

Even with the best plan in hand, questions always come up during an access control project. I've been doing this for years, and I find that the smoothest installations happen when everyone knows what to expect. Getting clear answers to a few common concerns ahead of time makes the whole process easier and ensures you end up with a system that actually does what you need it to.

Let's walk through some of the questions I hear most often from clients.

How Long Will This Actually Take?

This is usually the first thing people ask, and the honest answer is: it depends. The timeline for an installation access control system project is all about scale and complexity. There’s no simple, one-size-fits-all schedule.

For a small office with, say, two to four doors, a good installer can often get everything done in a day or two. That’s assuming the wiring paths are clear and we’re working with standard lock hardware.

But for a large-scale job—think a commercial high-rise, a sprawling apartment complex, or a hotel with hundreds of guest rooms—you’re looking at a project that could take several weeks, or even a couple of months. The big variables that really shape the schedule are:

• Door Count: Simply put, more doors mean more hardware, more cabling, and more time spent on configuration for each one.
• Wiring Complexity: Pulling new cable through old, hard-to-reach walls and ceilings is a world away from using existing, accessible wiring runs.
• Lock Hardware: There's a big difference between installing a simple electric strike and having to core a brand new hole through a heavy door for a mortise lock.
• Software & Integrations: Setting up the management software, importing a large user database, and tying the system into other platforms like video surveillance can add significant time to the back end of the project.

The only way to get a truly accurate timeline is to have an expert conduct a thorough on-site survey. That’s when we can see the building's unique quirks and give you a realistic schedule.

On-Premise vs. Cloud-Based Systems: Which is Right for Me?

This is a major decision point. The core difference between an on-premise and a cloud-based system is simply where your data and management software live.

An on-premise system means you have a physical server sitting in a closet somewhere in your building. You own it all. This gives you total control over your data, but it also means you’re on the hook for all the server maintenance, software updates, security patches, and data backups. It's a classic capital expense that often requires dedicated IT staff to manage.

A cloud-based system, which you'll often hear called Access Control as a Service (ACaaS), is hosted online by a provider. You manage everything from a web browser or a mobile app, from anywhere.

The provider handles all the heavy lifting in the background—the servers, the updates, the security, and the backups. This approach turns access control into a predictable operational expense, usually a monthly or yearly subscription. It's perfect for businesses that want more flexibility, easy scalability, and less IT headache. Honestly, the entire market is shifting this way; cloud is the new standard for a reason.

Can I Use My Existing Security Cameras?

Great question, and the short answer is yes, most of the time. Modern access platforms are built to play nicely with other security tech, and video surveillance is at the top of that list.

This integration is a game-changer. It lets you tie access events—like a card swipe or a door being propped open—directly to the video footage. Imagine someone uses their credential at the back door. The system can instantly bookmark that exact moment in your video feed. This makes investigating an incident dramatically faster.

The main thing we need to check is if your video management system (VMS) or camera network supports open integration standards. The most common one by far is ONVIF (Open Network Video Interface Forum). If your cameras are ONVIF-compliant, connecting them to the access system is usually pretty simple. It’s always a good idea to give your installer the make and model of your camera system early on so they can confirm compatibility.

What Happens if the Power Goes Out?

This is a critical safety question. Any professionally designed access control system is built for power failures. It won't just die and leave your building unsecured or trap people inside.

Key components, like the main controllers and their power supplies, are always connected to a battery backup or an Uninterruptible Power Supply (UPS). These backups kick in instantly, keeping the system running so credentials can still be read and doors can be controlled.

How the doors themselves behave comes down to the type of electronic lock installed:

• Fail-Secure Locks: These need power to unlock. When power is cut, they stay locked. This is what you want for securing high-value areas like a server room or inventory closet.
• Fail-Safe Locks: These need power to lock. When the power goes out, they automatically unlock. This is mandatory for emergency exits and fire escape routes to ensure people can always get out safely.

A huge part of the planning process is making sure every single door gets the right type of lock. It's how we guarantee your facility is both secure and compliant with life safety codes, even when the lights go out.

---
